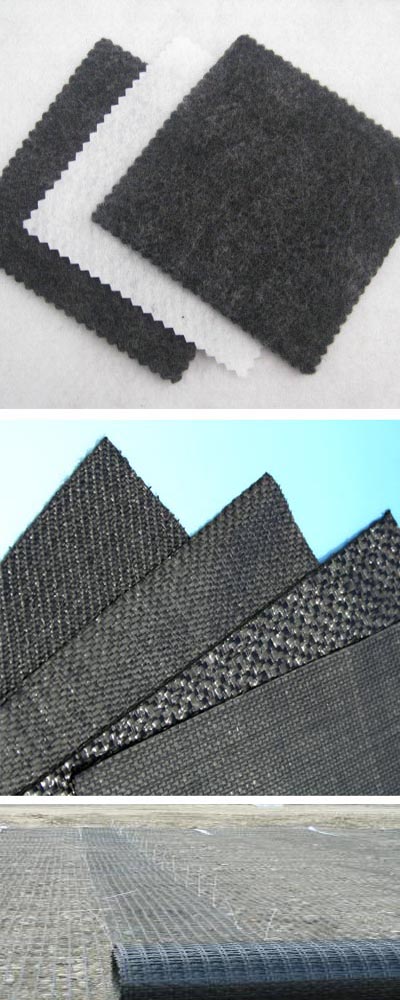

A permeable, polymetric (synthetics or natural) textile material, in the form of manufactured sheet (which may be woven, non – woven or knitted ) used in geotechnical, environmental, hydraulic and transportation engineering applications.
|
|
|
|
Specification
|
|
|
|
Woven Geotextile
|
|
|
|
WOVEN GEOTEXTILE range is made from Polypropylene (PP) fibers using a precision weaving process. They are characterized by high tensile strengths at low elongation, hence yielding high tensile modulus. These woven geotextiles are dimensionally stable, resistant to Ultra Violet (UV) degradation and are engineered to be mechanically and chemically stable in aggressive soil environments and are also resistant to biological environments normally found in soil.
|
|
|
|
Property
|
Property
|
Test Method
|
MGIPL W100
|
MGIPL W200
|
MGIPL W300
|
|
Tensile Strength (MD) kN/m
|
IS 1969
|
28.5
|
45
|
57
|
|
|
Tensile Strength (CD) kN/m
|
26.5
|
34
|
42
|
|
|
Elongation (MD) %
|
30
|
30
|
30
|
|
|
Elongation (CD) %
|
27
|
27
|
27
|
|
|
Trapezoid Strength (MD) N
|
ASTM D 4533
|
320
|
420
|
730
|
|
|
Trapezoid Strength (CD) N
|
320
|
480
|
520
|
|
|
Puncture Strength (N)
|
ASTM D 4833
|
350
|
480
|
620
|
|
|
Apparent Opening Size (mm)
|
ASTM D4751
|
0.075
|
0.075
|
0.075
|
|
|
Water Permeability (Flow Rate)
|
ASTM D 4491
|
9.5 1/m2/s
|
10 1/m2/s
|
9.5 1/m2/s
|
|
|
Mass Per Unit Area (gsm)
|
ADTM D 5261
|
140
|
200
|
240
|
|
|
|
|
|
|
|
|
|
|
|
|
Specification
|
|
|
|
Non- Woven Geotextile
|
|
|
|
(PP Nonwoven, Needlepunched)
|
Made from: Polypropylene
|
|
|
Nonwoven geotextiles are manufactured from high quality polypropylene staple fibres. The fibres are mechanically bonded through needle-punching to form a strong, flexible and dimensionally stable fabric structure, with optimum pore sizes and high permeability. The geotextile is resistant to chemicals and biological organisms normally found in soils and is stabilized against degradation due to short-term exposure to ultraviolet radiation. Mgiplgeo nonwoven geotextiles conforms to the following property values.
|
| |
|
Properties
|
Standard
|
Unit
|
MG
100
|
MG
150
|
MG
200
|
MG
250
|
MG
300
|
MG
400
|
MG
500
|
MG
600
|
|
Mass / Unit Area
|
ASTM D 5261
|
gms
/ sq.mt
|
100
|
150
|
200
|
250
|
300
|
400
|
500
|
600
|
|
Thickness
|
ASTM D 5199
|
mm
|
1.0
|
1.3
|
1.6
|
1.8
|
1.9
|
2.5
|
2.9
|
3.4
|
|
Tensile Strength
|
ASTM D 4595
|
kN/m
|
2.5
|
4.5
|
6.5
|
8
|
9.5
|
13
|
16
|
19
|
|
Elongation
|
ASTM D 4595
|
%
|
55
|
55
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Grab Strength
|
ASTM D 4632
|
N
|
300
|
475
|
525
|
700
|
800
|
900
|
1100
|
1200
|
|
Grab Elongation
|
ASTM D 4632
|
%
|
40
|
40
|
40
|
40
|
40
|
40
|
40
|
40
|
|
Trapezoidal
|
ASTM D 4533
|
N
|
130
|
220
|
265
|
300
|
400
|
500
|
700
|
800
|
|
Mullen Burst
|
ASTM D 3786
|
kPa
|
1000
|
1655
|
2100
|
2600
|
3180
|
4050
|
4700
|
5500
|
|
Puncture Strength (CBR)
|
ASTM D 6241
|
N
|
1100
|
1550
|
1940
|
2330
|
2900
|
3300
|
4000
|
4500
|
|
Opening Size
|
ASTM D 4491
|
microns
|
110
|
160
|
150
|
150
|
120
|
106
|
70
|
70
|
|
Permittivity
|
ASTM D 4491
|
Sec
|
2
|
2.0
|
1.8
|
1.6
|
1.2
|
0.7
|
0.5
|
0.6
|
|
UV Stability @500hrs
|
ASTM D 4355
|
%
|
70
|
70
|
70
|
70
|
70
|
70
|
70
|
70
|
|
Roll Dimensions
|
|
|
|
|
|
|
|
|
|
|
|
Roll Width
|
|
mt
|
4-6
|
4-6
|
4-6
|
4-6
|
4-6
|
4-6
|
4-6
|
4-6
|
|
|
|
|
a PR 15 meets all requirements for a Type III Geotextile as per IRC: SP: 59-2002
b PR 20 meets all requirements for a Type II Geotextile as per IRC: SP: 59-2002
c PR 30 meets all requirements for a Type I Geotextile as per IRC: SP: 59-2002
|
|
|
|
The above values are effective from 01 – 08 – 2009. The values are average roll values in which all the properties are having -10% tolerances. Water Permeability, Elongations are having -30% tolerance and AOS have + 30%. The information given in this data sheet is based on tests conducted at our in-house laboratory and independent accredited laboratories. While the information is presented as a true and accurate representation of the attributes of the products to the best of our knowledge, no expressed or implied warranties are made and SAMRIDHI PETROCHEM assumes no responsibility or liability with regard to the use of this information. The right to make periodic revisions of the specifications without prior notice is reserved.
|
