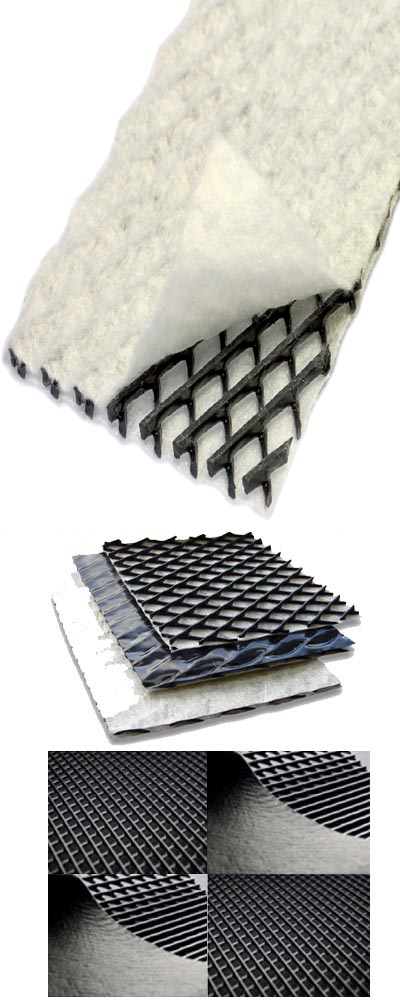

Single Sided Geocomposite MGIPL512 is a high – density polyethylene (HDPE) geonet with one polypropylene (PP) Geotextile heat laminated. The geonet is made with 2 over crossed strands at 60 o, whose geometry create channels with a high flow capacity, also under pressure and at very low gradents.
Function: Filtration, Drainage and Protection with one product.
Main Uses: Landfill cappings, new landfills, water reservoirs, horizontal drainage in embankments and platforms of roads, railways, trams and other trafficked areas, retaining structures, bridges, foundations, basements, canals, cut and cover tunnels, tunnels and other underground structures, gardens ad sport fields.
|
|
|
|
Specification
|
|
|
|
Property
|
Value
|
Unit
|
Test Method
|
|
Geonet Drainage
|
|
Polymer
|
HDPE
|
|
Thickness at 20kPa/200kPa
|
5,2/4,8
|
Mm
|
EN 964-1
|
|
Thickness reduction due to creeping
|
<3
|
%
|
EN 1897-01
|
|
Geotextile Filtration
|
|
Polymer
|
Polypropylene (PP)
|
|
Mass per unit area
|
120
|
g/m2
|
EN 965
|
|
Cone drop
|
32
|
mm
|
EN 918
|
|
CBR
|
1.4
|
kN
|
EN ISO 12236
|
|
Opening size
|
90
|
μm
|
EN ISO 12956
|
|
Geocomposite
|
|
Mass per unit area
|
770
|
g/m2
|
EN 965
|
|
Thickness at 20 k Pa/200 kPa
|
5.5/5.0
|
Mm
|
EN 964-1
|
|
Peak tensile strength MD/CD
|
13/10
|
kN/m
|
ISO 10319
|
|
Elongation at peak, MD/CD
|
50/50
|
%
|
ISO 10319
|
|
Crush resistance
|
>1.25
|
kPa
|
ASTM D 1621
|
|
CBR
|
2.1
|
kN
|
EN ISO 12236
|
|
Flow capacity in their plane, MD
|
|
I/m-s
|
ISO 12958
|
|
|
|
|
Double Sided Geocomposite MGIPL2512
is a high – density polyethylene (HDPE) geonet with two polypropylene \ (PP) Geotextile heat laminated. The geonet is made with 2 over crossed strands at 60 o, whose geometry create channels with a high flow capacity, also under pressure and at very low gradents.
Function: Filtration, Drainage, Separation and Protection with one product.
Main Uses: Landfill cappings, new landfills, water reservoirs, horizontal drainage in embankments and platforms of roads, railways, trams and other trafficked areas, retaining structures, bridges, foundations, basements, canals, cut and cover tunnels, tunnels and other underground structures, gardens and sport fields.
|
|
|
|
Specification
|
|
|
|
Property
|
Value
|
Unit
|
Test Method
|
|
Geonet Drainage
|
|
Polymer
|
HDPE
|
|
Thickness at 20kPa/200kPa
|
5,2/4,8
|
Mm
|
EN 964-1
|
|
Thickness reduction due to creeping
|
<3
|
%
|
EN 1897-01
|
|
Geotextile Filtration
|
|
Polymer
|
Polypropylene (PP)
|
|
Mass per unit area
|
120
|
g/m2
|
EN 965
|
|
Cone drop
|
32
|
mm
|
EN 918
|
|
CBR
|
1.4
|
kN
|
EN ISO 12236
|
|
Opening size
|
90
|
μm
|
EN ISO 12956
|
|
Geocomposite
|
|
Mass per unit area
|
890
|
g/m2
|
EN 965
|
|
Thickness at 20 k Pa/200 kPa
|
5.8/5.2
|
Mm
|
EN 964-1
|
|
Peak tensile strength MD/CD
|
20/17
|
kN/m
|
ISO 10319
|
|
Elongation at peak, MD/CD
|
50/50
|
%
|
ISO 10319
|
|
Crush resistance
|
>1.250
|
kPa
|
ASTM D 1621
|
|
CBR
|
3.7
|
kN
|
EN ISO 12236
|
|
Flow capacity in their plane, MD
|
|
I/m-s
|
ISO 12958
|
|
|
|
|
|
